Why air assist is crucial for clean cut edges
When you laser cut, you quickly think in terms of three parameters: power, speed, and focus. In practice, something else determines whether your edge is sharp, clear, and reproducible: air-assist. That continuous airflow through the laser head along the laser beam does more than just “a little blowing.” It influences the thermal balance in the kerf, removes smoke, suppresses flame formation, and protects your optics.
What air-assist does in the cutting zone
During cutting, a narrow slot (the kerf) is created, filled with hot gases and particles. Without airflow, those byproducts remain suspended in the laser beam, which prevents the beam from penetrating deeply into the material, causes faster discoloration or soot, and can even cause the material to ignite locally. A well-directed airflow prevents this.
Important to realize: air-assist must be adjusted, sometimes depending on the material. The optimal air direction and pressure/flow differ per material and purpose (cutting vs. engraving). A jet that is too strong can, for example, press smoke into the surface and result in duller edges; too little air allows flame formation. The finesse lies in the tuning.
Material behavior: wood/MDF is “burning,” acrylic is “melting”
Non-metallic materials roughly fall into two groups:
Wood/MDF/cardboard: you cut through pyrolysis/oxidation. Extra oxygen from the ambient air accelerates combustion; a strong air jet expels smoke, cools, and blows out fire spots. Higher pressure is advantageous here; the edge remains lighter and less burning occurs. You can also cut thicker material by using higher air pressure.
Acrylic (PMMA/plexiglass): you cut by melting and gasifying, not by burning. You want to keep the melt liquid briefly so that the surface tension “polishes” the edge, as it were (flame-polished effect). Too much air cools too rapidly: the edge becomes dull/milky. Therefore, a very low pressure is advised for acrylic, sometimes even turned off in specific setups (make sure your optics stay clean!) or at a maximum of ~0.2 bar with a larger laser head.
This contrast explains why true “one size fits all” settings do not exist. Those who think per material (burning vs. melting) cut more consistently and cleanly.

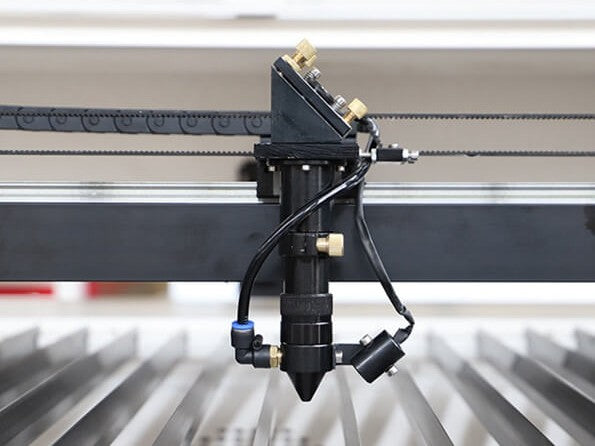

Laser head (nozzle) and alignment: the air must flow through the kerf
Air-assist only works if the air flows directly into the kerf, aligned with the laser beam close to the surface. If you blow from the side, you only help in one cutting direction and disrupt the beam elsewhere. A laser head distance of roughly 5–8 mm to the surface of the material is often sufficient in practice, but this also depends on your focal distance. For acrylic, it pays to choose a larger nozzle diameter so that you can still achieve sufficient exhaust flow at a lower pressure.
Compressor, air quality, and adjustability
A diaphragm pump often delivers enough for engraving and light cutting, but those who cut thicker materials or larger series will notice the difference with a compressor: a more constant flow, higher peak pressures, and cuts that are less sensitive to variations in kerf contamination. Do pay attention to air quality: oil and water are enemies of both lenses and edges. Use a water separator/filter and regulator, and size hoses/couplings so that you actually reach the desired pressure at the nozzle.
Engraving: less is more
When engraving, you want to keep smoke away from the lens, but you do not want a turbulent jet that presses residue into the surface or scatters the beam. Therefore, low pressure is customary when engraving, for all materials.
Setting and fine-tuning in practice
Start from the material group:
- Acrylic (clear/colors, GS/XT): start with very low pressure and only increase if you see small flames or if smoke lingers in the kerf. For smooth, glossy edges, we advise ≤ 0.2 bar (~3 psi), preferably with a larger nozzle. If the edge becomes milky, lower the pressure or use a larger nozzle/lower speed so that enough heat remains in the cut for a “flame-polish.” Cut in a single pass where possible; multi-pass cutting accentuates the melt layers.
- Wood/MDF/birch plywood: start higher and watch for flames and edge color. Most practical experience puts MDF clearly higher than acrylic; think of an order of magnitude difference. Increase the pressure until flames disappear and the edge becomes lighter.
Common mistakes (and how to recognize them)
- Too much air with acrylic: the edge is matte/milky instead of crystal clear → reduce the pressure or choose a larger nozzle.
- Too high pressure when engraving: wipe marks around the engraving → reduce pressure or turn off air-assist during engraving. Always pay attention to whether your optics stay clean.
When is air-assist indispensable?
Always during vector cutting of organic materials (wood, cardboard, rubber) for fire prevention, edge quality, and optics protection.
Usually when cutting acrylic, but then set very low to preserve the “flame-polish” effect. With some setups and thicknesses, “air-assist minimal or off” yields the clearest edge; test this purposefully.
